Name：MS5015 CIRCULAR CONNECTOR
Model：MS5015
Price：
Features：MS series circular connectors are used extensively in line connections between electrical equipment ,various instruments and meters .These connectors meet the standard -C-5015,have the features of light weight ,aluminium alloy material ,wide range ,threaded coupling ,good sealing performance ,resistance against corrosion ,high conductivity and high dielectric strength .It’s the ideal product to replace the -C-5015 series .They are interchangeable with the same category each other.
| Technical characteristics | |
| Insulation resistance | 》5000M Ω |
| Temperature | 55 ℃ ~ 125 ℃ |
| Endurance | 》 500 次 》 500times |
| Voltage proof | 2KV |
| Working Voltage | 500V |
| Materials And Surface Treatment | ||
| Materials | surface treatment | |
| BODY | aluminum | army green plated |
| INSULATOR | PPS plastic | |
| CONTACT | copper alloy | silver plated |
| Contact code | Solder O.D | Current | A.W.G |
| 16 # | φ 2.0 | 13 | 22 # ~16 # |
| 12 # | φ 3.0 | 23 | 14 # ~12 # |
| 8 # | φ 5.2 | 46 | 10 # ~8 # |
| 4 # | φ 8.5 | 80 | 6 # ~4 # |
| 0 # | φ 12.0 | 150 | 2 # ~0 # |

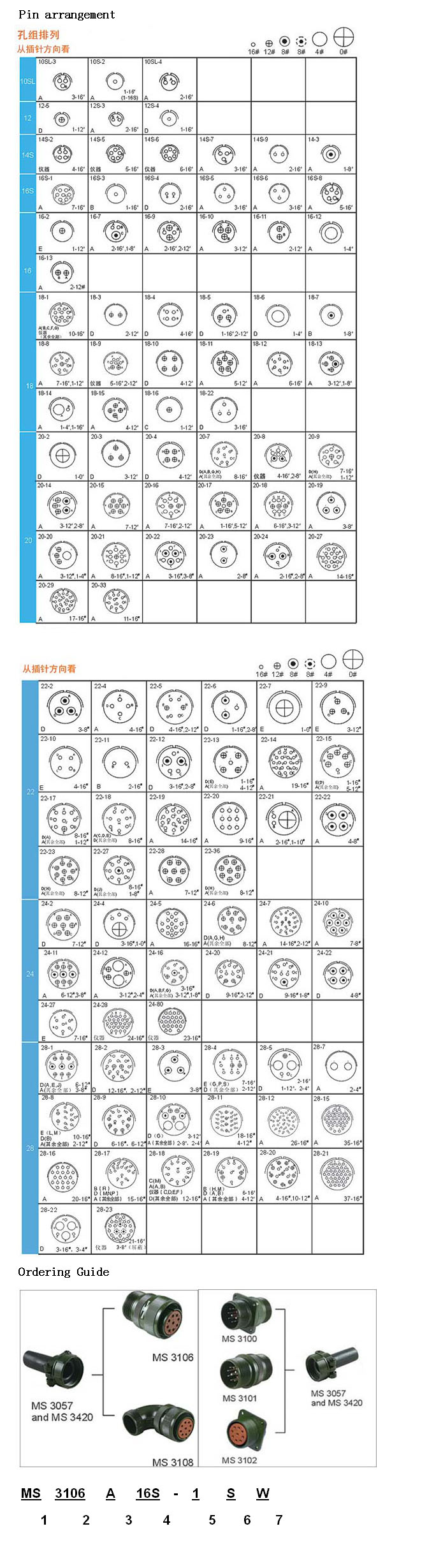

2.Plug and receptacle code:
3100:Square flange receptacle with cable shell;
3101:circular flange receptacle with cable shell;
3102:Square flange receptacle;
3106:Plug;
3108:angled plug.
3.Degree: A:整体套管Entire,B:分体套管Can be released
4.Shell type:8S,10S,12S,14S,16S,18,20,22,24,28,32,36,40
5.Contacts position type
6.Type of contacts：P:Pin,S:Socket
7.Key position: W,X,Y,Z, Without note:Normal position
